- 4000W Max. continuous power, 10000W Surge capacity (peak), Four GFCI AC receptacles, each equipped with a 20-amp breaker
- High surge capacity for products that require more power to start
- High efficiency - converts virtually all the battery’s available power to AC
- Mounting brackets for convenient installation, Heavy duty stud connectors, Remote on/off switch included
- Overload and over temperature shutdown, Over voltage protection (15.0 VDC), Low voltage alarm (11.0 VDC), Low voltage cut-out (10.5 VDC)

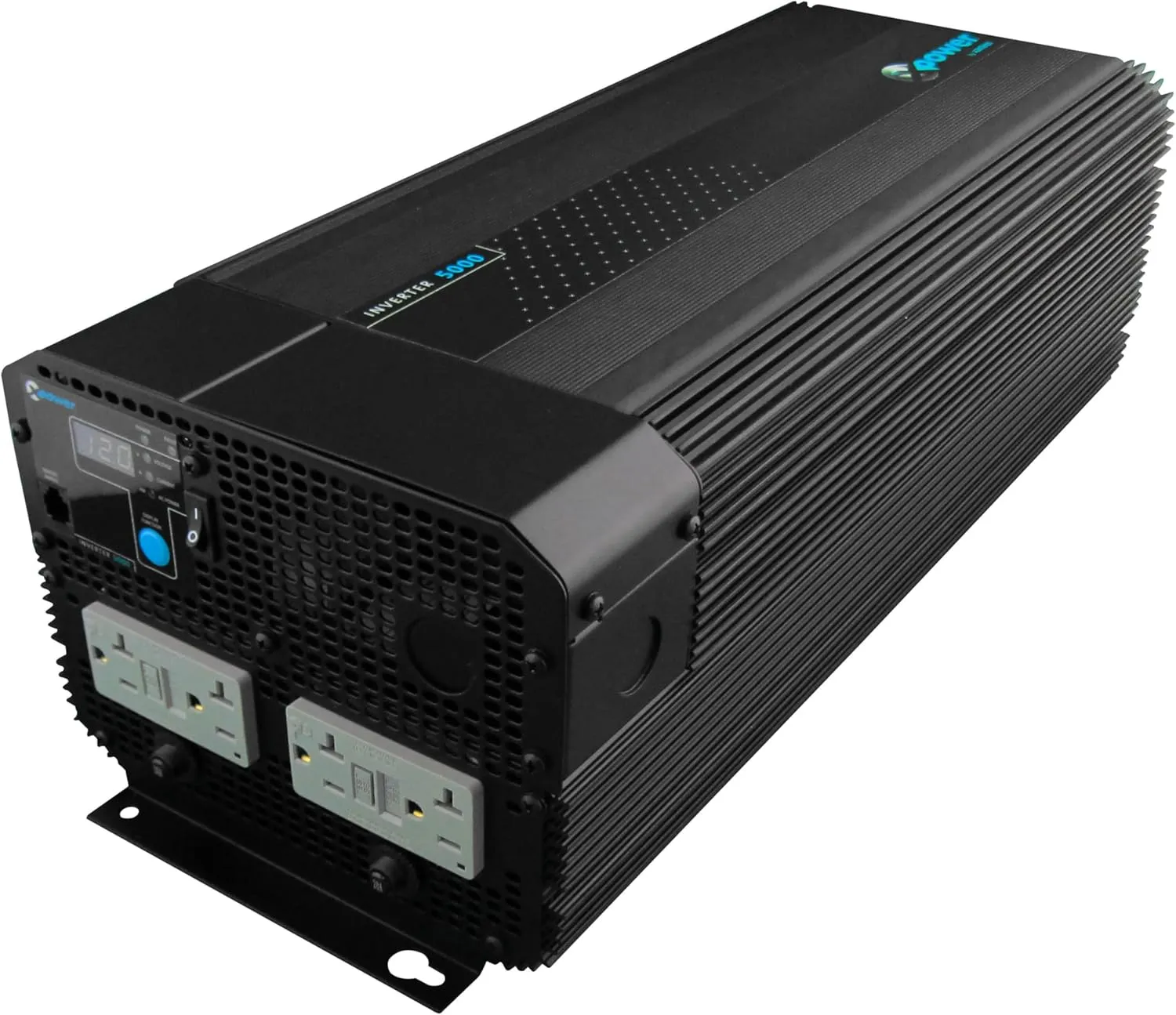

Xantrex 813-5000-UL XPower 5000 12V High Power Inverter, 4000W Max. continuous power, 10000W Surge capacity (peak), Four GFCI AC receptacles, each equipped with a 20-amp breaker
XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck.
Key Features
- Four GFCI AC receptacles, each equipped with a 20-amp breaker
- High surge capacity for products that require more power to start
- High efficiency - converts virtually all the battery’s available power to AC
- Mounting brackets for convenient installation
- Heavy duty stud connectors
- Remote on/off switch included
- Overload and over temperature shutdown
- Over voltage protection (15.0 VDC)
- Low voltage alarm (11.0 VDC)
- Low voltage cut-out (10.5 VDC)
Specifications
- Max. continuous power: 4000 watts
- Surge capacity (peak): 10000 watts
- AC output voltage: 115 VAC /- 5%
- AC output frequency: 60 Hz /- 1 Hz
- AC output waveform: Modified sine wave
- Optimum efficiency: 90%
- No load current draw: <0.6 A DC
- Input voltage range: 10.5 - 15.5 VDC
- Operating temperature range: 32°F − 104°F / 0°C − 40 °C
- AC receptacle: Four
- Dimensions (HxWxL): 6.25" x 8" x 19.5" (160 x 205 x 520 mm)
- Weigh: 24.1 lbs (10.9 kg)
