- High Efficiency: The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%.
- LCD Display: The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.
- Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong ante-interference ability, fast operation speed, high intelligence, and a powerful functional system.
- Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
- Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc.
How to Use
Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable.
Step 5: Repeat steps 1 to 3 to install and connect all inverters.
Step 6: Connect the AC main cable to the public grid and start your green energy journey
Specification

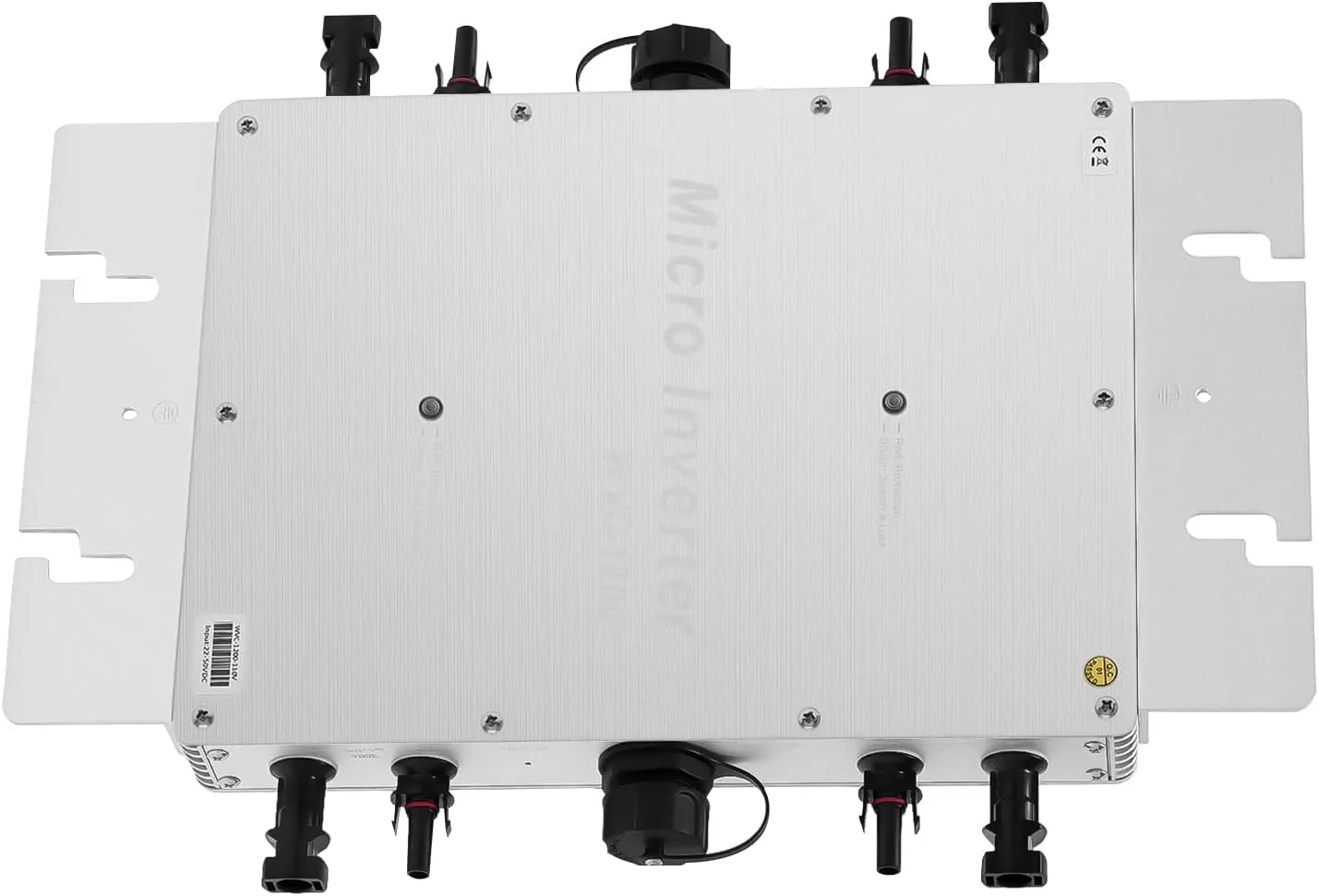

Model: WVC-1200W
Color: Silver
Material: Aluminium Alloy
Power: 1200W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50VDC
Maximum DC Short Circuit Current: 80A
Maximum Input Operating Current: 54.4A
Peak Power Output: 1200watt
Rated Output Power: 1150watt
Rated Output Current: 9.58A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: ＞99％
Max Unit Per Branch Circut: 3pcs(Single-phase)
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority
Gross Weight: 4.08kg/8.99lbs
Net Weight: 2.88kg/6.35lbs
Product Size: 21*37.4*4cm/8.27*14.72*1.57inch
Package Size: 47.5*34*11.5cm/18.7*13.39*4.53inch
Package Included
1* Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation
Notes
1. Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.
2. Please don't dismantle the machine. Only qualified maintenance personnel can repair the inverter.
3. Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives.
4. When using this inverter, please take good care of your children to prevent them from touching and playing to avoid electric shock.
5. Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.
6. When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.
7. When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is 36V/10mah for 300W, 36V/20mah for 600W, and 36V/40-45mah for 1200W.
8. The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.
9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
