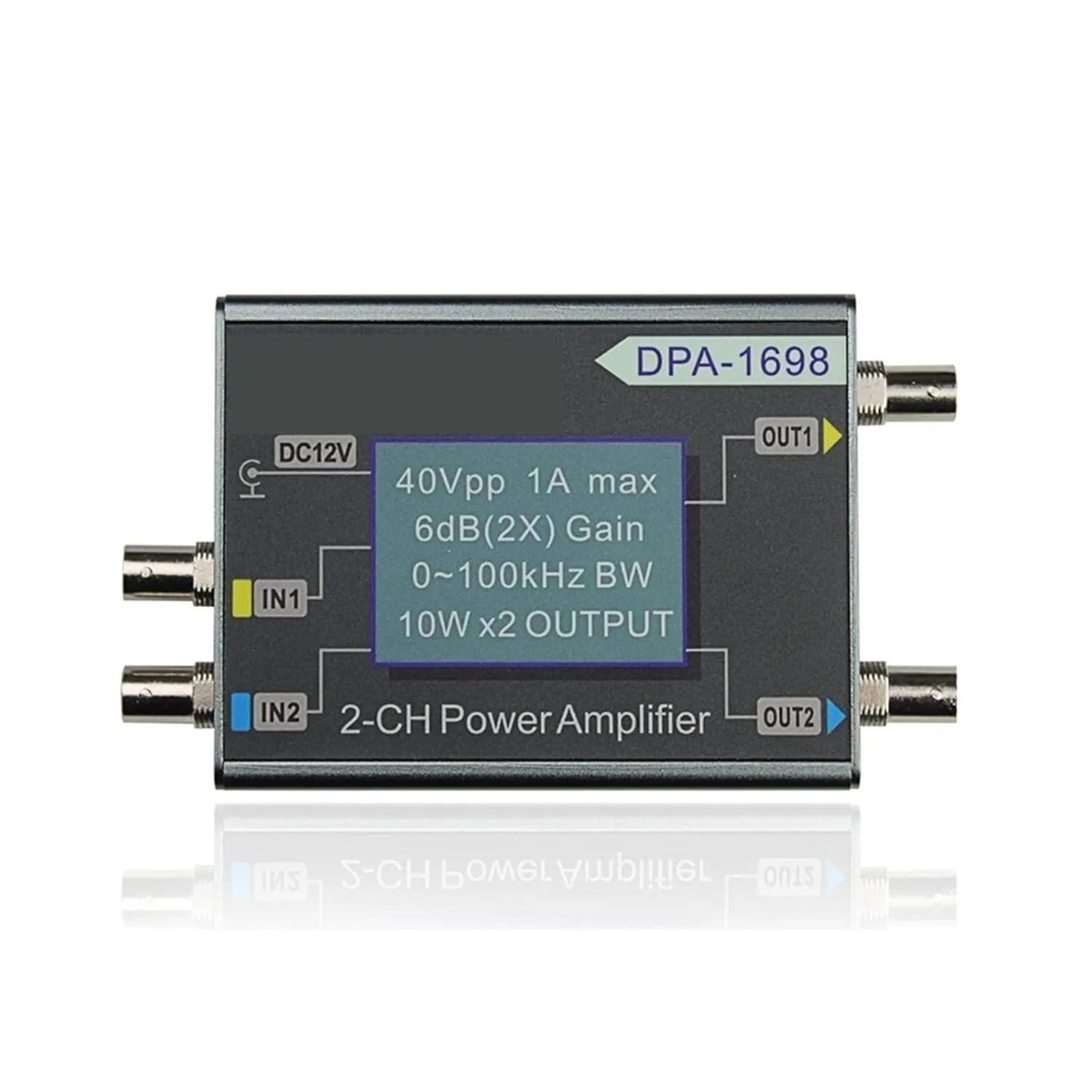

- Dual-channel power signal amplifier is made of high-strength aluminum alloy, which is durable and easy to dissipate heat.
- 2 times the amplitude of the input signal, the single channel current can reach 1A, the frequency range is 0-100KHz..
- It is also very suitable for use in teaching equipment, industrial control, product line testing, metal detection, medical physiotherapy, medical beauty, ultrasonic equipment driving and other fields.
- The power amplifier is very simple and convenient to use. The power supply adopts 12V5A power adapter, which is very safe.
- The input sine wave frequency is 80KHz, and the amplitude is 20Vpp. After the power amplifier, the signal amplitude is amplified by 2 times to 40Vpp.
Signal bandwidth：0~100KHz
Input Amplitude Range：0~20Vpp
Output Amplitude Range：0~40Vpp
Voltage gain：6dB(Magnify 2 times)
Output maximum current：1A
Maximum output power：10W*2
Output impedance：≤1Ω
Output phase：In phase with input
Distortion：≤1%
Flatness of output signal：±1dB
Input power supply voltage：DC12V±10%
Input maximum current：5A
Product Dimension：139*80*37.5mm
Net Weight：351g
- Package Dimensions : 0.39 x 0.39 x 0.39 inches; 2.2 Pounds
- Department : unisex-adult
- Date First Available : May 13, 2025
- Manufacturer : YANPUDIANZISHANGWU
- Country of Origin : China
