- HIGH QUALITY ALUMINUM ALLOY SHELL: The outer shell ensures excellent heat dissipation, reducing cumbersomeness for a lighter design with .
- EFFICIENT VOLTAGE CONVERSION: Unique structure for converting single level voltage into desired current or voltage with exceptional energy saving capabilities.
- WIDE APPLICATION: Ideal for LED, medical, display power supplies, as well as in industrial control, power equipment, instruments, and solar power fields.
- ENERGY EFFICIENT TRANSISTOR: Consumes minimal energy while providing highly efficient performance, ensuring long term cost savings.
- PREMIUM PERFORMANCE: Ensures optimal work efficiency and component protection, making it suitable for various electrical equipment needs.
Spec:

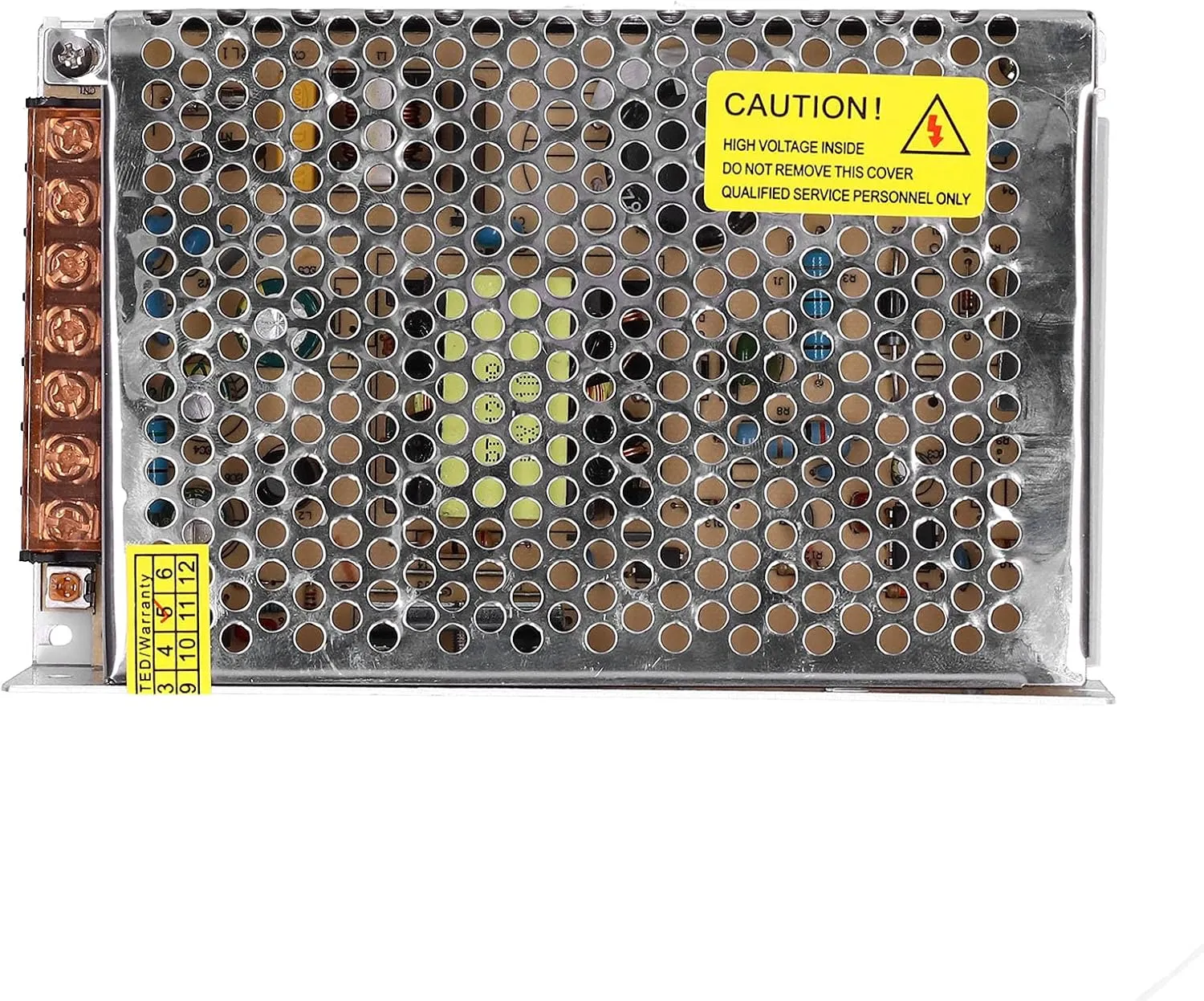

Item Type: Regulated Switching Power Supply
Material: Aluminum alloy
Input Voltage: AC 100 264V
Output Voltage: DC 12V
Output Current: 12.5A
Error Margin: ±1%
Adjustable Pressure Range: ±5%
Power: 150W Max
Rating: IP20
Start, Rise and Hold time: 200ms, 50ms, 20ms
Working Temperature and Humidity: 10℃ 60℃, 20% 90%RH
StorageTtemperature and Humidity: 20℃ 80℃, 10% 95%RH
Size: Approx. 160 x 98 x 50mm/6.3 x 3.9 x 2.0in
Application: LED power supply, medical power supply, display power supply, industrial control field, power equipment, instruments and meters, solar photovoltaic power supply
Package List：
1 x Switching Power Supply
Note：All data are measured manually and there is some error in the measurements.Monitors are calibrated differently, the colours shown in the photos may be slightly different from the real thing. Please refer to the real object.
Switch power supply products before use, please read the Manipulate manual carefully, check whether the switch power supply current and voltage and load current and voltage meet the requirements of use.
1. The switching power supply must pay attention to the internal high‑voltage part of the machine, can not touch the internal parts of the machine, non‑professionals do not open the power supply maintenance, otherwise there is the risk of electric shock. Before use, read the relevant wiring marks clearly
Please turn off the input power when wiring.
3. In order to ensure the Security of Manipulate and reduce interference, please ensure that the grounding terminal FG is reliably grounded. (The grounding wire diameter should be reasonably selected according to the input voltage and output power)
4. Check whether the mounting screw is in Interface with the power board device, and measure the insulation between the shell and the input/output to avoid electric shock.
5. Most of the LED switching
