- 【Features】Input overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection.

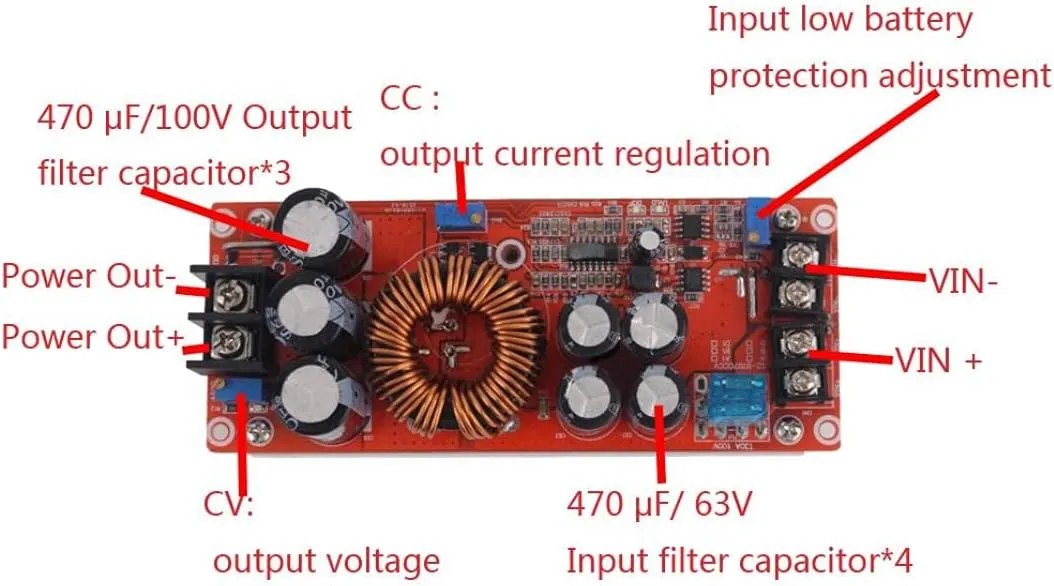

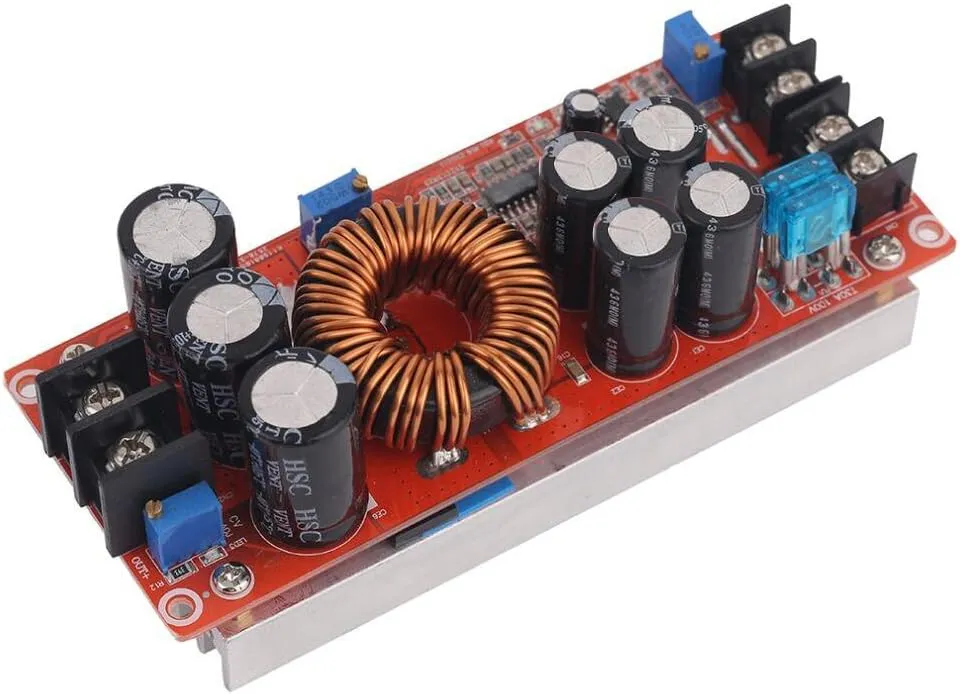

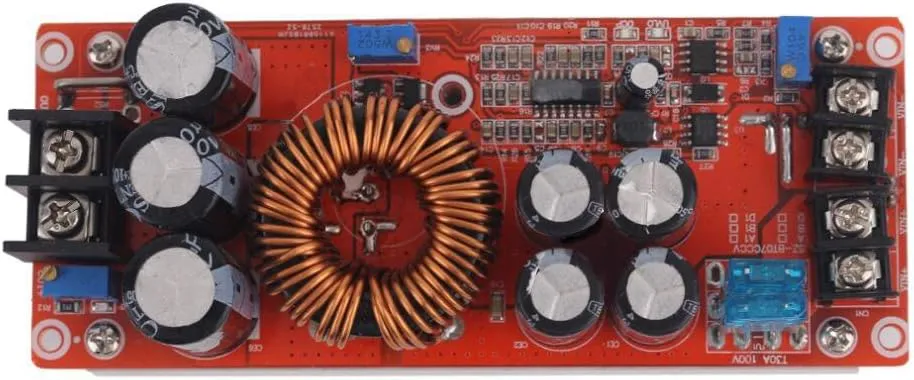

- 【DIY projects】It adopts 7 electrolytic capacitors and a 33MM high-power iron-silicon-aluminum magnetic ring to prevent over-temperature magnetic saturation under high current conditions. Use a piece of aluminum radiator on the back to dissipate heat ，Reserve fan mounting holes, suitable for more DIY projects.
- 【Adjustable Voltage 】1200W 20A DC converter boost Input voltage range is DC 10-60V, Output voltage range is DC 12-80V.can be arbitrary adjustable; Input current: 0.5-20A (MAX),Max output power is 1200W.(exceeds 15A, please add fan cooling）
- 【Output Power】Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W，input 60V * 20A = 1200W Note: Do not use the short-circuit output method to adjust the current. It is recommended to use a smaller adjustment range.
- 【Widely Application】can be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging.
