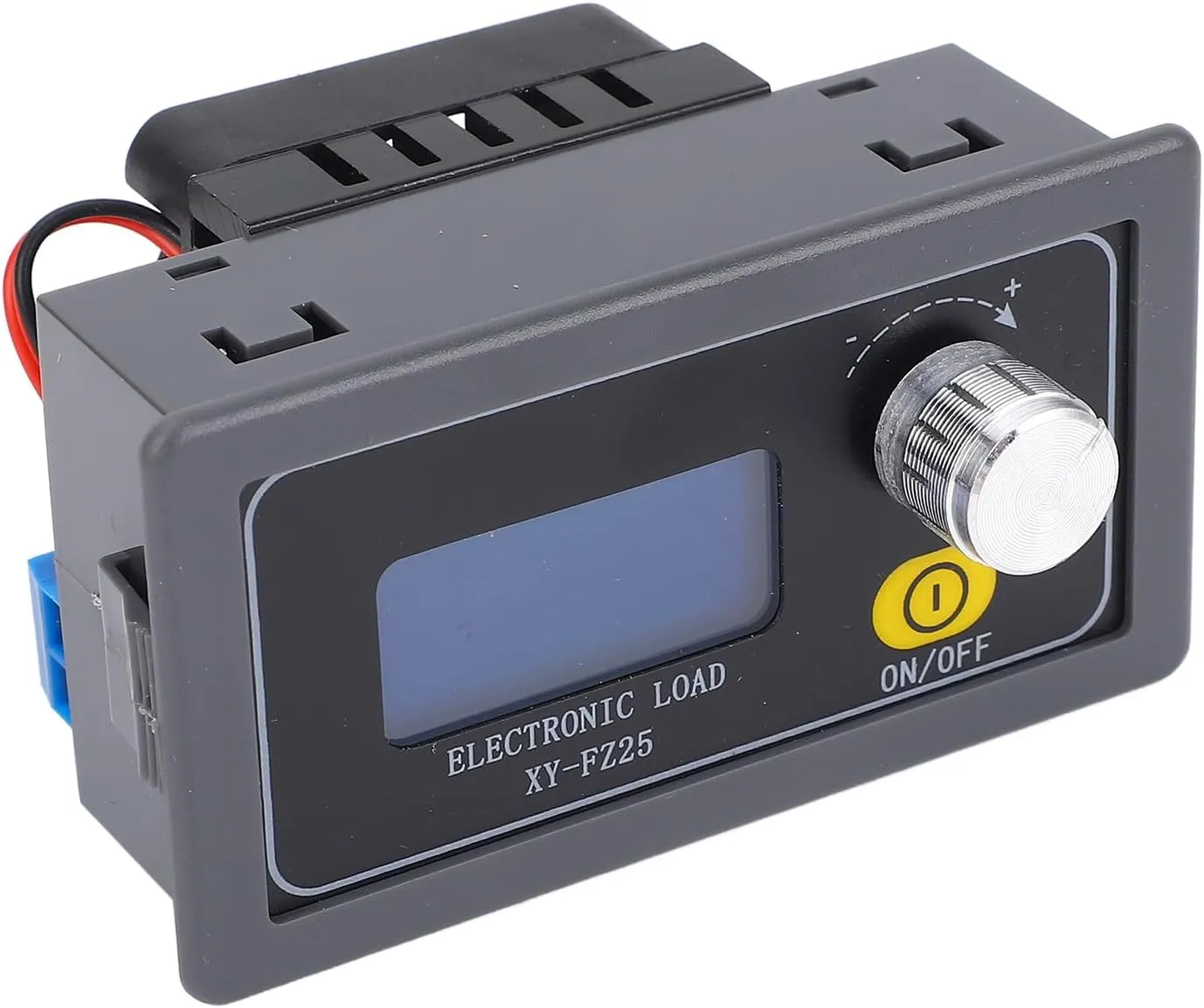

1. Comprehensive Data Display: This device displays current (A), voltage (V), power (W), capacity (Ah), and discharge time, giving you complete visibility into your battery's performance with just a .
2. Automatic Statistics Tracking: Enjoy the convenience of automatic calculation for discharge capacity and time, ensuring accurate and efficient data collection without any manual input required.
3. Customizable Data Grouping: Utilize the data group feature to choose whether to accumulate the capacity values and runtime from previous phases, enhancing flexibility for long term testing projects.
4. Accurate Current Adjustment: The rotatable encoding potentiometer allows for accurate current adjustments down to 0.01A, with a lock function to prevent accidental changes during use for enhanced reliability.
5. Intelligent Temperature Control: Featuring an automatic cooling fan that activates at power levels over 10W or temperatures exceeding 40°C, this tester ensures professional performance and safety during operating.

Spec:
Item Type: Battery Discharge Tester
Material: ABS
Voltage Range: Approx. 5.0-30.0V(With anti reverse connection safety, reverse connection does not burn)
Load Voltage Range: Approx. 1.5-25.0V(With anti reverse connection safety, reverse connection does not burn)
Load Current Range: 0.00-4.00A
Discharge Power: 25W
Constant Current Accuracy: ±(1% 3rd)
Voltage Accuracy: ±(0.5% 1 digit)
OVP (Over Voltage Safety): Default 25.2V (adjustable)
OCP (Over Current Safety): Default 4.10A (adjustable)
OPP (Over Power Safety): Default 25.5W (adjustable)
LVP (Under Voltage Safety): Default 1.5V (adjustable)
OTP (Over Temperature Safety): Default around 80℃ (non adjustable)
Fan Speed: Intelligent temperature controlled fan with oil, 5800±10%RPM

How to Use:
Take out the product for direct use

packing list:
1 x Discharge Capacity Tester
