- Input Voltage Range: 30-60V DC(36V/48V)
- Output Voltage: 12V(Fixed Output), Output Current:20A, Output Power:240w, High Conversion Efficiency: up to 97%
- Protection: Built in over-load, over-current, over-temperature and short-circuit protection.
- Design: It’s more durable to use with Aluminum shell and silicone sealed.
- Application: High power 240w for car truck vehicle, golf cart, led strip light, screen, monitoring system, motor and DIY etc.
Product Features

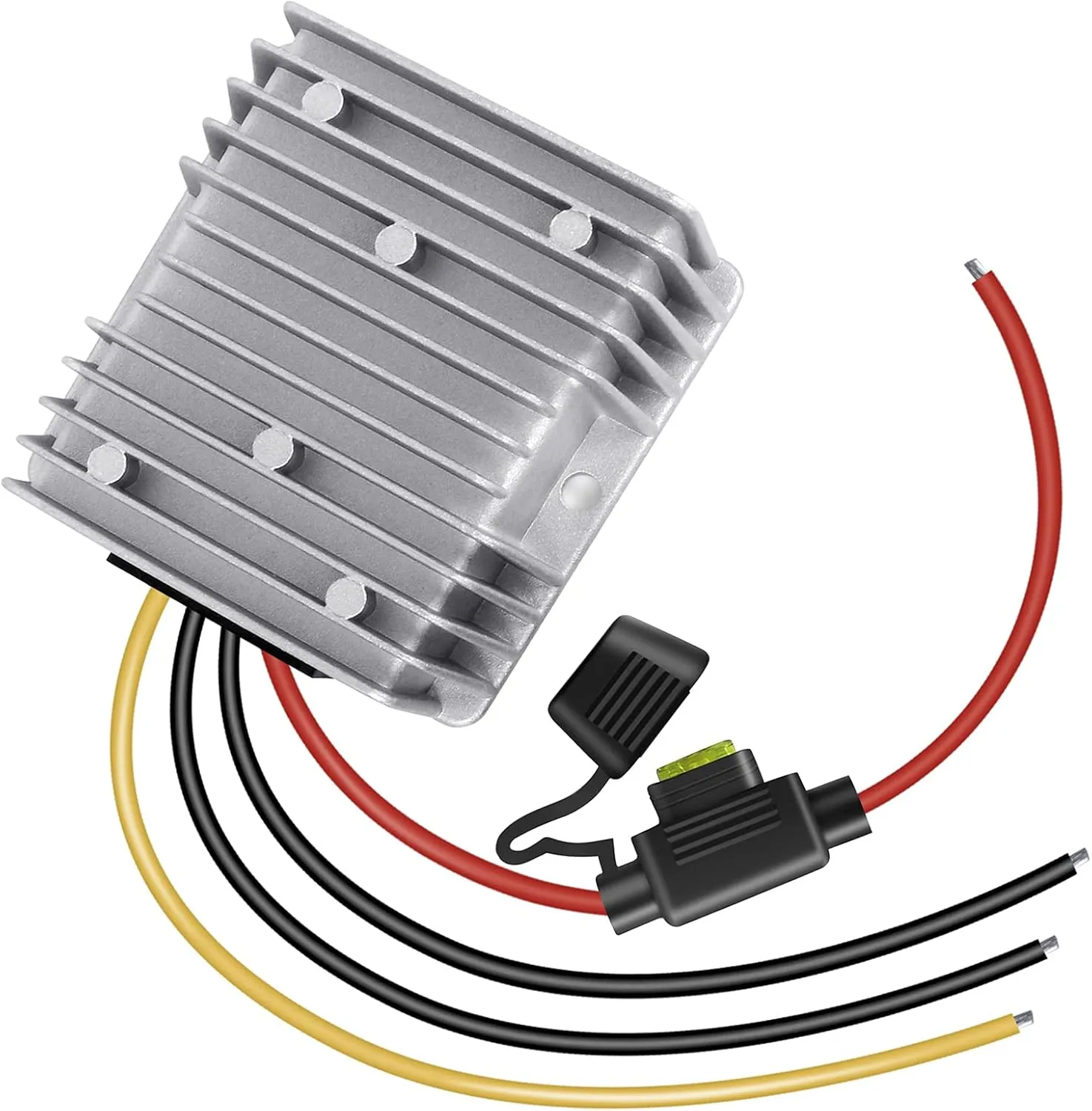

This is a Dc 12V(FIXED OUTPUT) 240W voltage regulator, capable of driving a 20a load with Aluminum shell
Parameters:
Input Voltage: DC 30-60V
Output Voltage: DC 12V (FIXED OUTPUT)
Output Current: 20A(MAX)
Output Rated Power: 240W
Efficiency: 97% (half load); 95% (full load)
No-load current: <0.1V
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 288g
Fuction:
1.Built in over-load, over-current protection
2.Built in over-temperature protection
3.Built in output short-circuit protection
Application:
Golf Cart, car truck vehicle, led strip light, screen, monitoring system, motor, solar pad and DIY etc.
